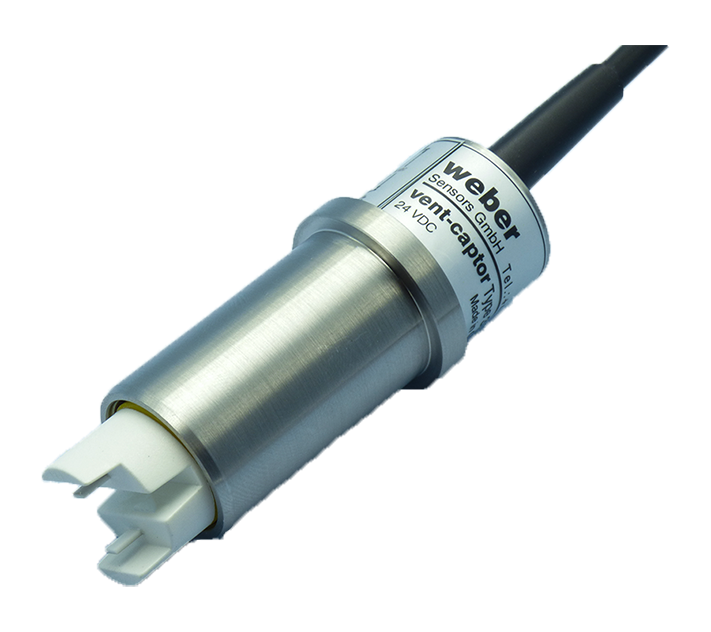

Vent-Captor 3205.0x

< back

REVISED VERSION: flow switch for air and other gaseous media
as a robust stainless steel version for pressure up to 10 bar
(measuring range from 0.5 m/s up to 50 m/s)

Differences to old version:

- Sensor probe: PT100/PT1000 (old: substrates)
- Range: 0.5 m/s - 50 m/s (old: 0.5 m/s - 20 m/s)
- LED: green/red (old: red)
- Switching current: 400 mA (old: 200 mA)
- Output: short circuit protected (old: not short circuit protected)

Output: switched

Operating principle: calorimetric (thermal mass)

Switching range: 0.5 to 50 m/s, fully adjustable

Options: cooling version up to 100° C (S102), substrate protection (S108)

Supply voltage: 24 VDC


Download Data sheet:
new data sheet will follow

Download installation instruction:
3202.0x (3205.0x)

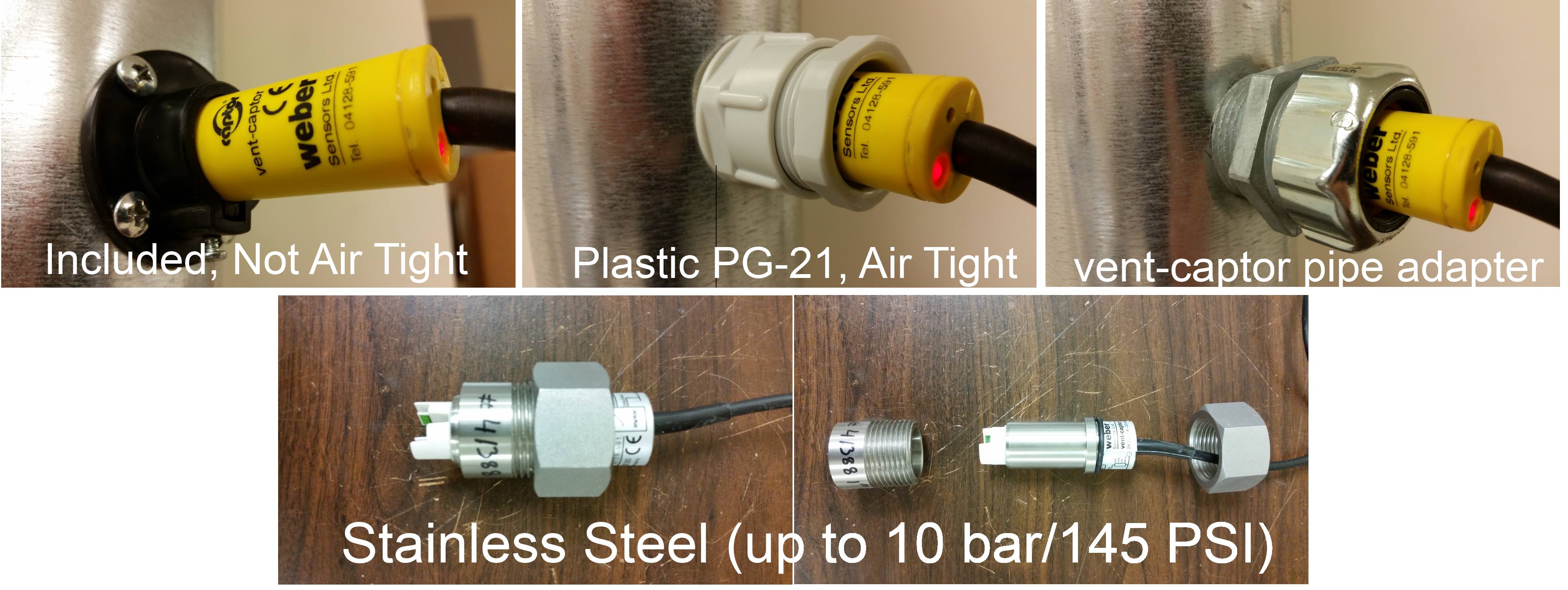

Mounting options:
3205.0x
