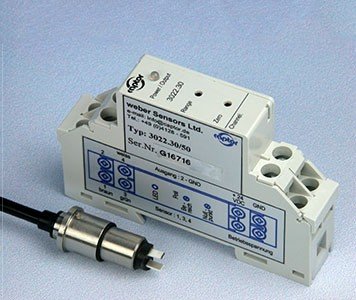

flow-meter (remote system) for very small pipe diameter
for air and other gases
vent-captor system 3505 + 3022.3x/xx: pipe diameter from ID10 to ID15
vent-captor system 3506 + 3022.3x/xx: pipe diameter from ID19 to ID25
350x + 3022.30/xx: current output (4 - 20 mA)
350x + 3022.31/xx: voltage output (0 - 10 V)
Measuring principle: calorimetric
Measuring range: 0 - 10 m/s to 0 - 50 m/s
Supply voltage: 18 - 30 VDC
Download:
Data sheet 3505+3022.30
Data sheet 3505+3022.31
Data sheet 3506+3022.30
Data sheet 3506+3022.31
Installation manual 350x+3022.30
